2-Space, Rack Mounted Attenuator Panels & Panel Kits |
 |
AT10-RM5
AT10-OR-RM5
(With Over-ride)
AT35-RM5
AT35-OR-RM5
(With Over-ride)
|
- 5 x 10 Watt
attenuators mounted onto a 2 Space 19" rack panel.
- -OR panels
are equipped with 24 Vdc Over-ride attenuators
- Shipped as parts, minor assembly required
- 5 x 35 Watt
attenuators mounted onto a 2 Space 19" rack panel.
- -OR panels
are equipped with 24 Vdc Over-ride attenuators
- Shipped as parts, minor assembly required
|
| 2
Space, Rack Mount Control Panels & Custom Mount Attenuators |
 |
RM52
RM42- Special Order |
- Control Panel,
2 rack spaces high, for 19" racks, colour - black
- 5 x 3/8"
holes, evenly spaced, extra plugs provided to cover unused holes
- This unit
is always in stock
- RM42 is the same as RM52, except has only 4 mount holes evenly spaced. Use this panel with AT150-OR-CM or AT150-OR-CM
|
| CM
Series Custom Mount Attenuators |
Download Specification Sheet Standard Installation Sheet Over-ride Installation Sheet |
 |
AT10-CM
AT10-OR-CM (With
Over-Ride)
|
- 10 Watt Attenuator,
70 Volt
- For use with
the attenuator panels above
- supplied
with high quality back printed dial label, black knob and hardware
- 10 Watt Over-Ride(24Vdc)
Attenuator, 70 Volt
- For use with
the attenuator panels above
- supplied
with high quality back printed dial label, black knob and hardware
|
 |
AT35-CM
AT35-OR-CM (With
Over-Ride)
|
- 35 Watt Attenuator,
70 Volt
- For use with
the attenuator panels above
- supplied
with high quality back printed dial label, black knob and hardware
- 35 Watt Over-Ride(24Vdc)
Attenuator, 70 Volt
- For use with
the attenuator panels above
- supplied
with high quality back printed dial label, black knob and hardware
|
| |
AT75-CM
AT75-OR-CM (With
Over-Ride)
|
- 75 Watt Attenuator,
70 Volt
- For use with
the attenuator panels above
- supplied
with high quality back printed dial label, black knob and hardware
- 75 Watt Over-Ride(24Vdc)
Attenuator, 70 Volt
- For use with
the attenuator panels above
- supplied
with high quality back printed dial label, black knob and hardware
|
 |
AT150-CM
AT150-OR-CM (With Over-Ride) |
- 150 Watt Attenuator, 70 Volt
- For use with the attenuator panels above
- supplied with high quality back printed dial label, black knob and hardware
- If Panel Mounting, use RM42
- 150 Watt Over-Ride(24Vdc) Attenuator, 70 Volt
- For use with the attenuator panels above
- supplied with high quality back printed dial label, black knob and hardware
- If Panel Mounting, Use RM42
|

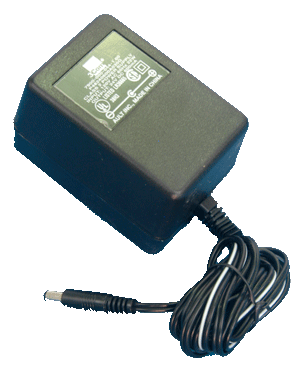

24vdc Power Supplies |
 |
PS24DC-1 (300 mA)
PS24DC-2 (600 mA)
PS24DC-3 (1000 mA) |
- 24vdc wall packs, CSA and UL approved
- PS24DC-1 is 300 mA
- PS24DC-2 is 600 mA
- PS24DC-3 is 1000 mA
- Use with the above controls for the Over Ride (OR) relay operation
|
